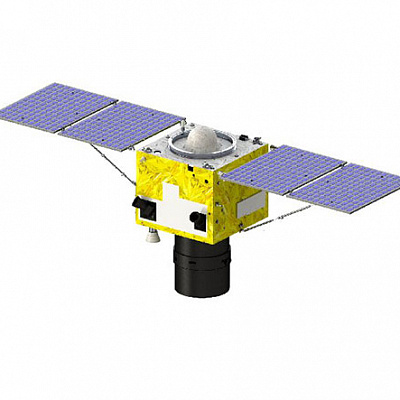

SuperView-1 (GaoJing-1) is the constellation of 4 Chinese satellites with high resolution. The first two satellites were launched in December 2016 and the second two were launched in January 2018.

Beihai Silver Beach, Guangxi Province in China, SuperView-1 © Space Will
Beihai Silver Beach, Guangxi Province in China, SuperView-1 © Space Will
Dubai Creek, Dubai in UAE, SuperView-1 © Space Will
Dubai Creek, Dubai in UAE, SuperView-1 © Space Will
Guanabara Bay, Rio in Brazil, SuperView-1 © Space Will
Guanabara Bay, Rio in Brazil, SuperView-1 © Space Will
Kampong Ayer, Bandar Seri Begawan in Brunei, SuperView-1 © Space Will
Kampong Ayer, Bandar Seri Begawan in Brunei, SuperView-1 © Space Will
Venice, in Italy, SuperView-1 © Space Will
Venice, in Italy, SuperView-1 © Space Will
Victoria Bay, in Hong Kong, SuperView-1 © Space Will
Victoria Bay, in Hong Kong, SuperView-1 © Space Will
Space Will plans to launch more follow-on satellites that will join the constellation up to 2022. The complete constellation will include 16 optoelectronic satellites with 0,5 m resolution, 4 optoelectronic satellites with 0,5 m resolution, 4 radar X-band satellites and many other satellites for hyperspectral and video-mode imaging.

Spacecraft design and mission details

Name

SuperView-1

Country

China

Developer

CAST (China’s Academy of Space Technology)

Operator

Space Will

Launch vehicle

CZ-2D

Launch date

28 December 2016 (SuperView-1 01&02)
9 January 2018 (SuperView-1 03&04)

Launch site

Taiyuan Satellite Launch Center

Date of deactivation

-

Orbit: Type
Altitude, km
Inclination, deg.

Sun-synchronous
530
97,6

Mission duration, years

8

Revisit frequency, days

4

Mass, kg

560

Specifications

Sensor bands

Panchromatic: 450-890 nm

Blue: 450-520 nm

Green: 520-590 nm

Red: 630-690 nm

Near-IR: 770-890 nm

Dynamic range, bits per pixel

11

Sensor resolution (at nadir), m

PAN: 0,5 m
MS: 2 m

Swath width, km

12

Horizontal accuracy (CE90%)

9,5 m

Onboard storage

4 TB

Applications:

  • Emergency management and emergency preventing;
  • Environmental monitoring;
  • Mapping;
  • Agricultural management.
